Productivity
|
1000 kg/h
|
|
Power
|
elevator 0,37 kW, mill 2,2 kW
|
|
Electrical connection
|
400V / 16A
|
|
Fruit insertion height
|
800 mm
|
|
Discharge height
|
1335 mm
|
|
Connection for cleaning
|
½"
|
|
Connection for washing vessel
|
1½"
|
|
Material
|
1.4301 / AISI 304
|
|
Cutting screens included
|
9 mm and 16 mm
|
|
Length
|
2620 mm
|
|
Width
|
700 mm
|
|
Height
|
2100 mm
|
|
Weight
|
185 kg |

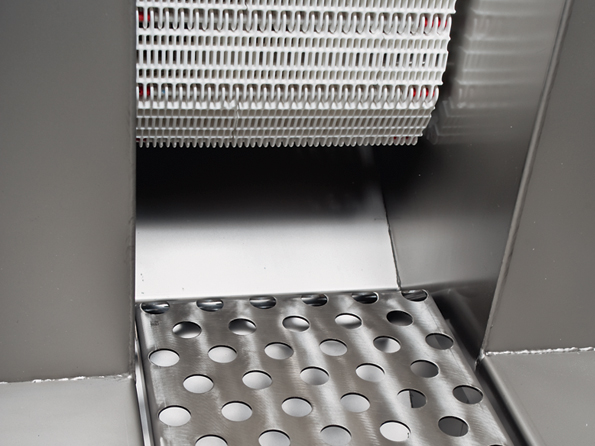

Washing system of stainless steel for fruits and vegetables with attached pivoting centrifugal mill. The washing system consists of sorting grid, washing vessel, chain conveyor and add-on Voran pivoting centrifugal mill RM2.2. The conveyor speed can be adjusted by using the integrated frequency converter. The Elevator is suitable for different foods e.g. fruits, berries or vegetables. Due to the movability, there is a use with our without the centrifugal mill possible without any modification work.
