Washing-milling system Voran WALC 40

Washing system consisting of washing vessel, vertical auger-type elevator and add-on centrifugal Voran mill RM40. Versions available for the Voran hydraulic packing presses with rotating trays (100PS/180PS) and the Voran EBP500/580/650 belt presses.

Technical INFORMATION

Productivity

3000 kg/h

Power

Elevator 2,2 kW,

 Mill 4,0 kW

Electrical connection

400V / 16A

Fruit insertion height

800 mm

Discharge height

1250/1260/1460 mm

Connection for cleaning

½"

Connection for washing vessel

2"

Material

1.4301 / AISI 304

Cutting screen included

12 mm

Length

2000 mm

Width

700 mm

Height

2200 mm

Weight

285 kg

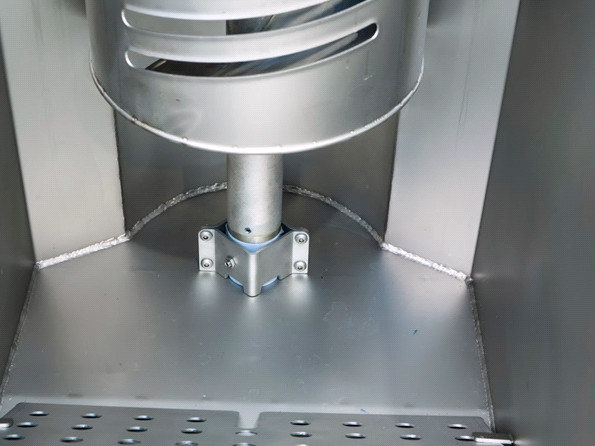

Washing-milling system for fruit made from stainless steel, consists of a washing container, vertical worm elevator and attached centrifugal RM40 mill. The washing system is switched on and off  automatically using an electrically controlled overflow protection in order to ensure optimal filling of a belt press. The rotary tower can be turned through 360° for simple cleaning or various arrangement options within the whole device.

Fruit is fed into a washing bath and is elevated into the mill, receiving a spray of water while being elevated. The fruit is shredded by a heavy rotor and pulp is discharged through a perforated screen - for different types of fruit, screens can be changed for versions with different sized perforations to optimise the consistency of the pulp for pressing, which can allow you to get optimum juice yields. The supply of apples to the mill is automatically regulated by a pressure sensor either on the pomace hopper of the mill or at the press inlet.

Versions available for the Voran hydraulic packing presses with rotating trays (100/180PS) and the Voran EBP500/580/650 belt presses.

Download product brochure:





Washing-milling system Voran WALC 40
