Electric pasteuriser Voran PA90 with heating coil and tube heat exchanger. Productivity 120 l/h, power 6kW. The PA90 pasteuriser consists of a stainless steel pressure
vessel, which is filled up to the mark with water. The cover
is locked pressure-tight by a bayonet catch.
Price starting from 1980 € (without VAT)
Electric pasteuriser Voran PA90 (120 l/h)
Productivity
90-120 l/h
Power
6 kW
Electrical connetion
400V/ 50Hz / 16A
Material
1.4301 / AISI 304
Weight
10 kg
Voran PA90 pasteuriser makes the gentle preservation of your fruit and
vegetable juices possible without any chemical additives.
The PA90 pasteuriser consists of a stainless steel pressure
vessel, which is filled up to the mark with water. The cover

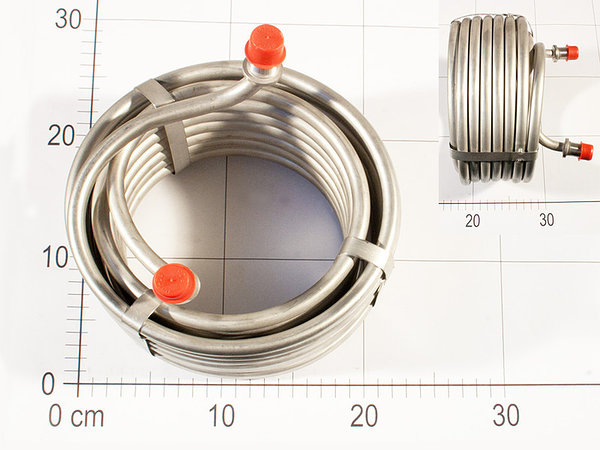

is locked pressure-tight by a bayonet catch. The electrical
heating coil and the tubular heat exchanger, through which
the raw juice flows, are installed in the cover.
The raw juice (ideally already settled), is routed through
the clear juice drain of the buffer container into the lower-positioned
pasteuriser. The heat is transferred to the raw
juice by the water that is heated by the electrical heater. If the
filling process is interrupted when the heater is switched
on, then overpressure is discharged through the safety
valve. The integrated overheating guard shuts off if the
water level in the pressure vessel is too low.
The juice’s pasteurisation temperature is regulated on the
hose line exclusively by changing the flow rate. The filling
temperature is displayed on the analogue thermometer.
This makes the gentle preservation of your fruit and
vegetable juices possible without any chemical additives.
To increase the productivity of the pasteuriser, it can be placed on the stove. It is possible to achieve a productivity of up to 120l per hour, depending on the starting temperature of the raw juice.
