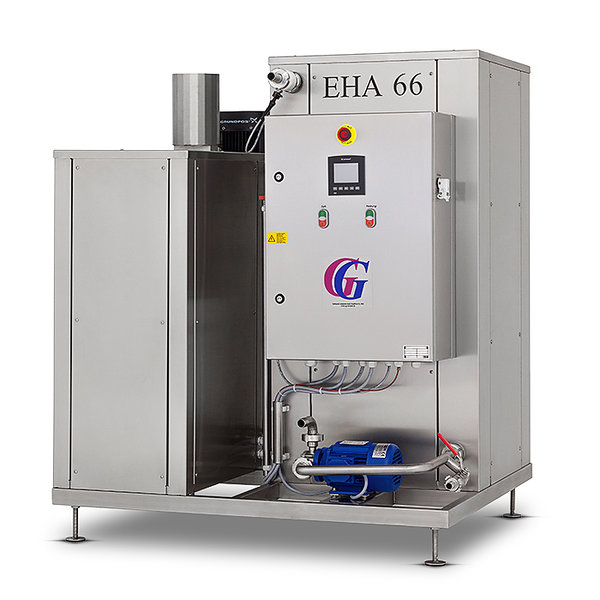

Pasteurisers with oil-fired burner EHA (400-1800 l/h)

The pasteuriser consists of an oil-fired burner as energy source, a heat exchanger, a fully automatic control system for the burner and a juice feed pump. Models with productivity from 400 l/h up to
1800 l/h:

  • EHA40
  • EHA66
  • EHA90
  • EHA132
  • EHA198

Technical INFORMATION


 Model

EHA40

EHA66

EHA90

EHA132

EHA198

Productivity

400 l/h

600 l/h

900 l/h

1200 l/h

1800 l/h

Engine power

2,2 kW

4 kW

4 kW

5,5 kW

7,5 kW

Juice content

5,7 l

9,1 l

13,7 l

18,3 l

27,4 l

Exchanger surface

1,20 m²

1,60 m²

2,40 m²

3,30 m²

4,90 m²

Exchanger tube

22 x 1,5 20m

25 x 1,5  24m

25 x 1,5  36m

25 x 1,5  48m

25 x 1,5  72m

Calorific power

48 kW

66 kW

90 kW

132kW

198 kW

Average consumption  4,5 l/h

 6 l/h

9 l/h

12 l/h

18 l/h

Length

1000 mm

1200 mm

1200 mm

1850 mm

2300 mm

Width

1000 mm

1000 mm

1000 mm

1200 mm

1200 mm

Height

1200 mm

1400 mm

1600 mm

1400 mm

2000mm

Weight

280 kg

400 kg

450 kg

600 kg

1000 kg


EHA pasteurisers are especially designed to be easy to operate. Pasteurisers have fully automatic control and high efficiency by counter flow principle. It is also possible to process higher viscosities, for example tomato juice.

The pasteuriser consists of an oil-fired burner as energy source, a heat exchanger, a fully automatic control system for the burner and a juice feed pump. All components are assembled on a stable stainless steel frame with adjustable feet or roles for the transportation of the plant.
