Productivity | 1500 kg/h |
Power of the press | 0,55 kW |
Power of the cleaning system
| 0,12 kW |
Electrical connection | 3x400V / 16A |
Cycle time | 1,8-3,8 min |
Speed of the belt
| 0,9-1,8 m/min |
Material | 1.4301 / AISI
304 |
Belt width
| 650 mm |
Strip length
| 8120 mm |
Water consumption for belt cleaning
| 3 l/min |
Height of the mash intake
| 1460 mm |
Length | 1460 mm |
Width | 2538 mm |
Height | 1463 mm |
Weight | 1060 kg |

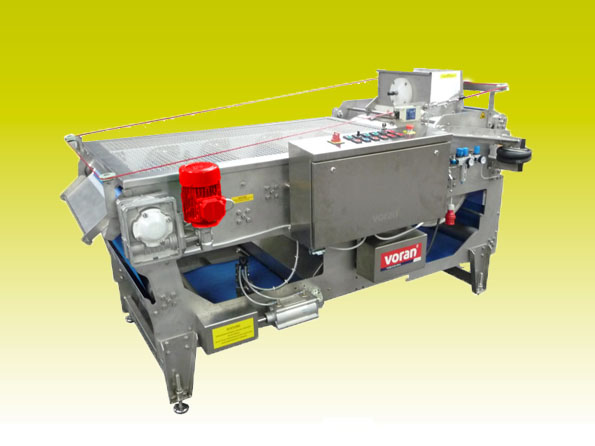

This belt press is operated completely automatically and continuously, with only very little supervision required. Optimum juice quality and a yield
of up to 75% are guaranteed thanks to the variable speed and pressure control of the belt press,
which can be used for a wide range of fruit
(pomaceous fruit needs to be de-stoned before
pressing), berries, vegetables and herbs and for
dehydrating various produce.
Special attention has been paid during design to
ensure accessibility of all components and easy
cleaning. The central cover is easy to open and all components such as metering
box, mash feed, juice flow plate, juice basin etc.
can be removed without any tools. As a result the
equipment can be cleaned effectively during and
after processing.
All parts that come into contact with the product are food
contact compliant. All parts are made from stainless steel
to fully meet the strictest hygiene requirements for food
and drink processing.
This machine is characterised by its low operating and
maintenance costs. One reason for this is the use of press
rollers that are mounted on fixed shafts without being subject to alternating bending stress. Using an endless screen
belt guarantees improved retention of the mash as well as
extending service life.
