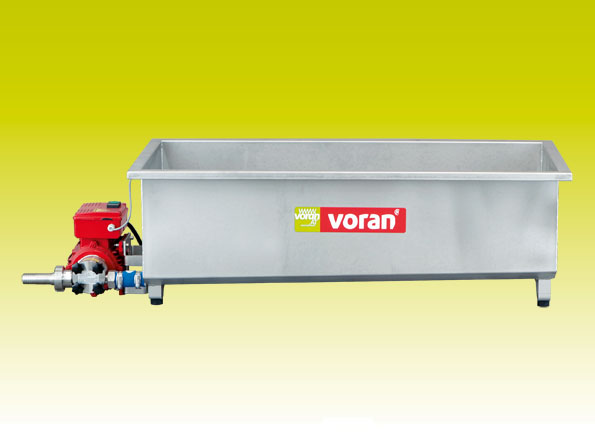

Juice collection tank with integrated pump, Voran

Collection basin with 1 mm coarse screen. Easy and safe operation thanks to fully automatic impeller pump. Juice collection tank is suitable for all Voran belt presses. Available models with 65- or 100-litre tank.

Price starting from 2090 € (without VAT)

Technical INFORMATION

Capacity of the tank

65 l

100 l

Productivity

1800 l/h

3600 l/h

Power

0,55 kW

0,55 kW

Electrical connection

400V / 16A

400V / 16A

Connection for juice outlet

1"

1"

Length

1250 mm

1250 mm

Width

508 mm

508 mm

Height

290 mm

350 mm

Weight

27 kg

29 kg

















The juice runs directly from the belt press through a removable, large surface 1 mm coarse screen to be collected in a 65-litre or 100-litre buffer tank. A stainless steel level switch automatically controls the impeller-type pump that is designed to carefully convey the product at flow rates of up to 1,800 litres per hour. The pump can also be switched on and off manually if the tank needs to be drained.

The collection tank with integrated pump is ideal to use with belt presses but can also be used with other types of presses, for example with packing presses.

In the video below it is shown the juice collection tank in complete production line, the juice collection tank can be seen in the video in a timeframe of 00:50-01:05.
