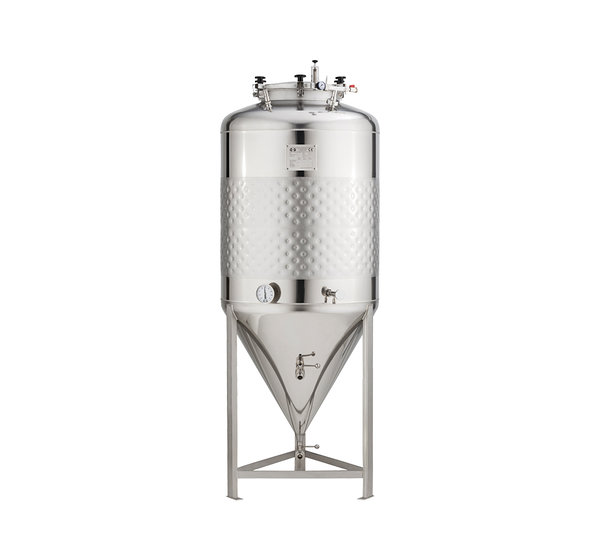

Stainless steel pressure tank, Speidel FD-2.5B-ZKG

2.5 bar stainless steel pressure tanks with cone bottom and cooling jacket for fermentation and maturing or simply for storage. Speidel FD-2.5B-ZKG tanks have capacity from 120 to 625 liters.





Technical INFORMATION

Product code

Capacity

Diameter

Height

FD-055-S-V0081

120 l

550 mm

1380 mm

FD-055-S-V0083

240 l

550 mm

1795 mm

FD-082-S-V0114

625 l

820 mm

2200 mm







Speidel’s maturing pressure tank is the unrivaled solution for fermentation and maturing. This type of tank is often used for the one tank method. The yeast is gathered in the cone and, depending on the model you have, can be removed. The beer does not need to be decanted. The FD-2.5B-ZKG is approved for a pressure of up to 2.5 bar.

FD-2.5B-ZKG series tanks are free-standing on welded-on pipe legs that have mounting holes. Tanks bodies are made entirely of stainless steel (1.4301). Tanks have stable cone bottom end with approx. 60° surface and filling dome NW 400 with flap lid. FD-2.5B-ZKG tanks have weld-on thread NW 10 DIN 11851 for installation of sampling tap and G1" ET bottom outlet. Tanks also have laser welded double jacket for cooling with 2 connecting nozzles G1" with external thread. Tanks safety valve is set to  2.5 bar.

High quality stainless steel containers from the leading German manufacturer Speidel are suitable for storing juice or for the fermenting and preserving of wine, cider or beer. Only the first-class stainless steel, which is thicker and more durable than regular, has been used to manufacture these containers. The tanks are smooth from inside and have Speidel's legendary concealed welds, which ease the cleaning of the tanks and prevent the accumulation of dirt. The containers can be fully filled and emptied, which prevents any residue remaining in the container that can endanger its contents. Speidel's tanks are long-term companions and help you to save time and money.
